Configuring IPSec tunnels on devices is frequently tricky because of the limited diagnostics the devices provide … The Mikrotik RouterOS devices have fairly good logging … The FRITZ!Box less so. A trap for young players with RouterOS is the need to bypass both NAT and FastTrack in the router for LAN to LAN IPSec connections. Also as almost everything goes through the NAT additional rules are required to allow access to the router’s interface from the remote LAN.

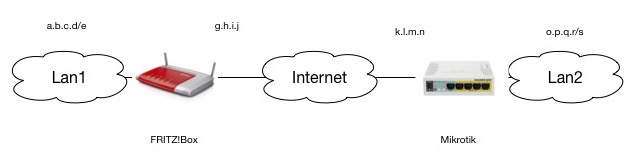

FRITZ!box configuration (assuming linking 2 class C networks):

vpncfg {
 connections {
   enabled = yes;
   editable = no;
   conn_type = conntype_lan;
   name = "FritzMikrotik"; // Name of the connection
   boxuser_id = 0;
   always_renew = yes;
   reject_not_encrypted = no;
   dont_filter_netbios = yes;
   localip = 0.0.0.0;
   local_virtualip = 0.0.0.0;
   remoteip = k.l.m.n; // Remote IP
   remote_virtualip = 0.0.0.0;
   keepalive_ip = 0.0.0.0;
   localid {
    ipaddr = g.h.i.j;
   }
   remoteid {
    ipaddr = k.l.m.n; // Remote IP
   }
   mode = phase1_mode_idp;
   phase1ss = "alt/all/all";
   keytype = connkeytype_pre_shared;
   key = "SecretPassword"; // Presharedkey
   cert_do_server_auth = no;
   use_nat_t = no;
   use_xauth = no;
   use_cfgmode = no;
   phase2localid {
     ipnet {
     ipaddr = a.b.c.d; // Local Subnet
     mask = 255.255.255.0;
    }
   }
   phase2remoteid {
    ipnet {
     ipaddr = o.p.q.r; // Remote Subnet
     mask = 255.255.255.0;
    }
   }
   phase2ss = "esp-3des-sha/ah-no/comp-no/pfs";
   accesslist = "permit ip any o.p.q.r 255.255.255.0";
  }
  ike_forward_rules = "udp 0.0.0.0:500 0.0.0.0:500",
   "udp 0.0.0.0:4500 0.0.0.0:4500";
}

And for the MikroTik:

/ip ipsec proposal
add enc-algorithms=3des name=Fritz pfs-group=none
/ip ipsec peer
add address=g.h.i.j/32 enc-algorithm=3des lifetime=7h local-address=\
  k.l.m.n nat-traversal=no secret=SecretPassword
/ip ipsec policy
add dst-address=a.b.c.d/24 proposal=Fritz sa-dst-address=g.h.i.j \
  sa-src-address=k.l.m.n src-address=o.p.q.r/24 tunnel=yes
/ip firewall filter
add action=accept chain=input comment=\
  "Allow Access to Router Interface from IPSEC trusted Network" \
  dst-address=o.p.q.r src-address=a.b.c.d/24
/ip firewall nat
add action=accept chain=srcnat comment="NAT BYPASS for IPSEC Tunnel" \
  dst-address=a.b.c.d/24 src-address=o.p.q.r/24
/ip firewall raw
add action=notrack chain=prerouting comment=\
  "Fasttrack BYPASS for IPSec traffic " dst-address=o.p.q.r/24 \
  src-address=a.b.c.d/24
add action=notrack chain=prerouting dst-address=a.b.c.d/24 src-address=\
  o.p.q.r/24

Please note that the NAT bypass rule should be at the top of the NAT list.

Thanks to one of the very helpful engineers at Mikrotik who helped correct an excess policy declaration
